Design

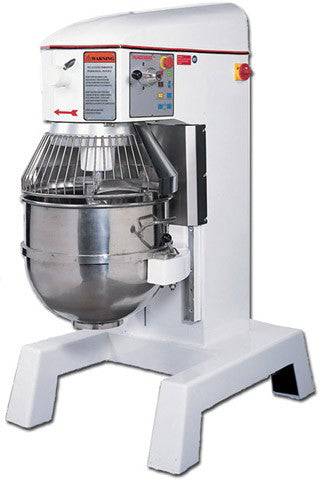

Heavy-duty, all purpose mixers use a powerful, planetary mixing action to thoroughly blend, mix and aerate all ingredients with consistent and predictable results.

*Same shape as ARM-60 but 80-quart mixer runs a 5Hp motor.

Features

• 80-quart capacity
• 1-99minute timer for continuous or timed operation
• Powerful 5 Hp motor
• 6-Speed (3 speed gear box with two speed motor)
• 220v/60/3, 50amps
• Transmission: Wide-faced, hardened alloy steel, helical gears fully sealed in transmission lubricant with heavy-duty ball bearings and clutch combine for highly dependable, quiet operation.
• Motor cooling system.
• New safety Guard available.
• NSF approved coating.
• Baked painting.
• Moisture resistant switches
• Motor thermal protector.
• No-volt Release: Prevents activation of the mixer in the event of power interruption
• Bowl lift: Manual bowl lift operated and self-locking in to position
• #12 size taper hub for attachments
• Cast base construction. Silver metallic finish using epoxy powder coat enamel for easy cleaning
• Attached 6-foot, flexible, 3-wire cord and plug for grounded receptacle

Standard Accessories

• 80-quart s/steel bowl.　
• Flat batter beater
• Spiral dough hook
• Wire whip
• Safety bowl Guard
• Attachment hub

Specifications

Motor:

• 6-Speed (3 speed gear box with two speed motor)
• 5Hp continuous
• 60 amps

Electrical:

• 220/60/3

Speed Range:

• Beater: 18-100
• Hub: 38-228

Weight:

• Net: 1025lbs (466kg)
• Ship: 1200lbs (538kg)

Dimensions:

• Width: 32'' (813mm)
• Depth: 43.8'' (1113mm)
• Height: 66'' (1676mm)

Shipping:

• Width: 33.8'' (858mm)
• Depth: 47'' (1193mm)
• Height: 71.8'' (1828mm)
